The uniWood Vacuum Lifter is able to handle a variety of materials including wood panels, melamine sheets, MDF boards, chipboard, door panels, laminated boards and other similar items.

23 Recent Views In Stock

The device has been specially designed to suit professional requirements and it features a range of options to suit different needs.

Featuring state-of-the-art technology, these Barbaric systems provide an innovative lifting solution integrated with the vacuum handling device. A huge advantage is the energy efficiency of these devices. When compared to other vacuum solution, like vacuum tube lifters, the uniWood requires only a fraction of the power supply to operate. A smart handling device that will also reduce your energy consumption!

The uniWood Vacuum Lifter is a complete handling system that can easily be used by a single operator. With enhanced safety, options like load monitoring and a ‘blow-off’ feature for quick release, it is a great option for cabinet makers, shopfitting, joinery, processing facilities and related industries.

This vacuum lifter boasts an incredible range with a variety of benefits and abilities.

The uniWood Vacuum Lifter range features four core models that are suitable for a variety of applications. The systems can either lift or lift and tilt the workpiece and position them where required. View the options below.

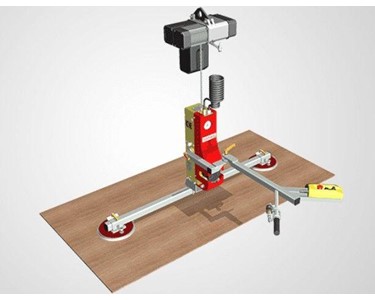

B1 uniWood Vacuum Lifter – lifting only

Ideal for handling without the need for tilting. This device is used on flat panels like laminated sheets and natural wood products, with the maximum panel size of 3000 x 2100 mm. The B1 uniWood comes complete with lifting gear and additional safety features (like a vacuum gauge and hand slide valve for vacuum on/off).

Lifting Height – 2000 mm
Lifting Speed – Dual speed 2-8 m/min
Operating Voltage – 415 V / 50 Hz
Compressed Air – 6 bar dry, filtered
Load Capacity – 150 kg

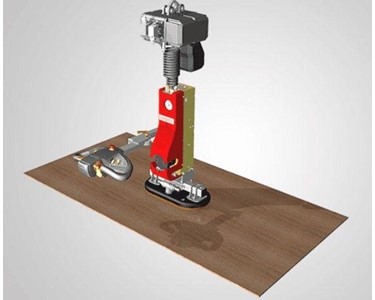

B1 mini uniWood Vacuum Lifter – lifting only

Featuring a compact main body with a low system height, the B1 uniWood mini is a small and versatile device. This option does not include a tilting function. It is perfect for horizontal or vertical only handling of the workpiece. Able to be operated with one hand with fast cycle times due to the smart lifting gear.

Lifting Height – 2000 mm
Lifting Speed – 0-10 m/min variable lifting speed
Operating Voltage – 240 V / 50 Hz
Compressed Air – 6 bar dry, filtered
Load Capacity – 150 kg

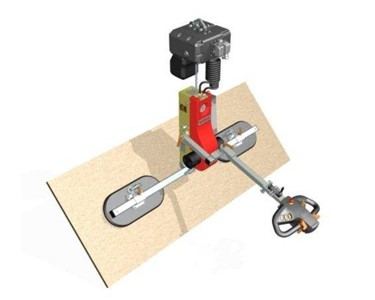

B3 uniWood Vacuum Lifter – lifting and tilting abilities

This model is ideal for handling panels including laminated sheets, natural wood and similar products. It can handle sheets with a maximum size of 3000 x 2100 mm. The B3 uniWood also features a unique 90° tilting function actuated by the pneumatic cylinder. It comes as a complete handling system with lifting gear and additional safety features (including vacuum gauge and hand slide valve).

Lifting Height – 2000 mm
Lifting Speed – Dual speed 2-8 m/min
Operating Voltage – 415 V / 50 Hz
Compressed Air – 6 bar dry, filtered
Load Capacity – 150 kg
Tilting Angle of 90°

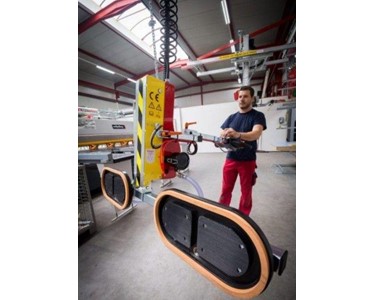

B3 mini uniWood Vacuum Lifter – lifting and tilting abilities

The B3 uniWood mini has a compact main body and low system height. It is perfect for applications requiring handling with a 90° tilting function. This system handles boards with ease and can be operated with only one hand! The smart lifting gear ensures a fast cycle time.
