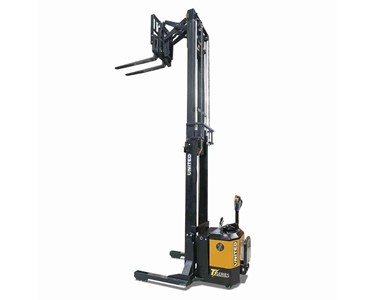

The T-Series NSX12EA walkie reach stacker is the all-rounder machine for any warehouse. The scissor reach arm makes it the effective solution to handle all types of stacking and loading of pallets up to 5.5 metres high, with a lift capacity up to 1200kg.
Built on an innovative AC drive motor, these stacker delivers strong power with a top travel speed of 6km/h, while ensuring excellent maneuverability and accurate control in the tightest work spaces.
- Robust scissor reach design
- Auto speed reduction
- Anti-roll back system
- Maintenance-free AC motors
Equipment Features
Operator Comfort
Advanced Steering and Controls
Power steering enhances productivity while the integrated controls allow the operator to multi-task the lifting/lowering of the mast while traveling.
Optional Proportional Valve on Handle
Offers more precise control over lifting and lowering of forks.
Optional Platform
A foldable platform can reduce operator fatigue over long shifts by allowing the operator to move freely with the stacker.
Productivity & Performance
Robust Scissor Reach Design
Double reach stacking with cushioning to reduce shocks upon extending and retracting fork movements.
Battery Discharge Indicator
Displays useful info to the operator including operating hours, battery level and error codes.
Safety
Automatic Lift Lock
A function that ensures the mast maintains its original lift position even when there is a sudden disconnection of power supply.
Safe Hydraulic System
A safety design that prevents the mast from dropping abruptly due to a sudden loss of hydraulic pressure or leaks.
Auto Speed Reduction
Feature that automatically reduces the speed once the stacker exceeds the present lifting height.
Safety Switch
Emergency stop button located on the cover automatically cuts power when pressed.
Anti-Roll Back
System that keeps the stacker steady on ramps and prevents it from rolling backward.
Standard Pin Code Start
Exclusive pin pad to increase security and limit unauthorised use.
Lower Cost
Enhanced Heat Dissipating Design
Suited to long operation by protecting components from overheating.
Maintenance Free Motors
Robust and maintenance free AC traction motor allows for smooth travel transition from point to point.
Servicing and Maintenance
Top Load Battery Design
Allows the battery to be changed more efficiently and provides easy access to the battery refilling point.
Easy Maintenance
Quick access to internal key components for inspection, maintenance or replacement by loosening four securing bolts.
