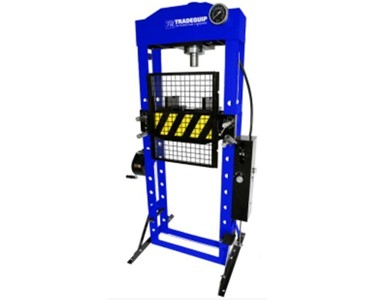

TradeQuip Professional - Hydraulic Press 30,000kg I 1187T

Hydraulic Press 30,000kg I 1187T

Features:

• Heavy-duty H-frame manufactured of superior-grade steel to exacting standards for industrial quality and durability
• 2 speed foot & hand pump operates the ram at a slow or fast speed to improve operator efficiency
• Non-slip bed winch and steel cable roller offers easy raising and lowering of the press bed
• Steel mesh safety cage provides operator safety and visibility
• 100mm pressure gauge ensures accurate monitoring
• Superior quality hydraulic cylinder unit requires lower oil pressure to apply load, reducing wear and extending service life
• Treated & polished ram is fitted with heavy duty backup ring, preventing bypass oil drift
• Superior quality hydraulic oil, improves corrosion resistance and high/low temperature flexibility
• Integrated overload protection eliminates overloading
• Double spring ram return for fast ram retraction
• Lead-free paint for a long-lasting finish and to minimise corrosion
• Oil, grease and dirt-resistant paint finish for easy cleanup
• Pair of bed plates included

Specifications:

• Safe Working Capacity: 30,000kg
• Working Range: 151-1031mm
• Overall Height: 1830mm
• Overall Width: 795mm
• Overall Depth: 700mm
• Bed Outside: 184mm
• Bed Inside: 164mm
• Bed Width: 535mm
• Piston Ram Stroke: 150mm
• Ram Diameter: 80mm
• Bed Height Settings: 8
• Nett Weight: 167kg
• Crate: 2120 x 780 x 270mm
• Gross Weight: 212kg

Read more...

To contact TQB Brands about TradeQuip Professional Hydraulic Press 30,000kg I 1187T use Get a quote.

Features:

• Heavy-duty H-frame manufactured of superior-grade steel to exacting standards for industrial quality and durability
• 2 speed foot & hand pump operates the ram at a slow or fast speed to improve operator efficiency
• Non-slip bed winch and steel cable roller offers easy raising and lowering of the press bed
• Steel mesh safety cage provides operator safety and visibility
• 100mm pressure gauge ensures accurate monitoring
• Superior quality hydraulic cylinder unit requires lower oil pressure to apply load, reducing wear and extending service life
• Treated & polished ram is fitted with heavy duty backup ring, preventing bypass oil drift
• Superior quality hydraulic oil, improves corrosion resistance and high/low temperature flexibility
• Integrated overload protection eliminates overloading
• Double spring ram return for fast ram retraction
• Lead-free paint for a long-lasting finish and to minimise corrosion
• Oil, grease and dirt-resistant paint finish for easy cleanup
• Pair of bed plates included

Specifications:

• Safe Working Capacity: 30,000kg
• Working Range: 151-1031mm
• Overall Height: 1830mm
• Overall Width: 795mm
• Overall Depth: 700mm
• Bed Outside: 184mm
• Bed Inside: 164mm
• Bed Width: 535mm
• Piston Ram Stroke: 150mm
• Ram Diameter: 80mm
• Bed Height Settings: 8
• Nett Weight: 167kg
• Crate: 2120 x 780 x 270mm
• Gross Weight: 212kg

Read less...

To contact TQB Brands about TradeQuip Professional Hydraulic Press 30,000kg I 1187T use Get a quote.

Tradequip Press1187T Brochure(1.34MB)
