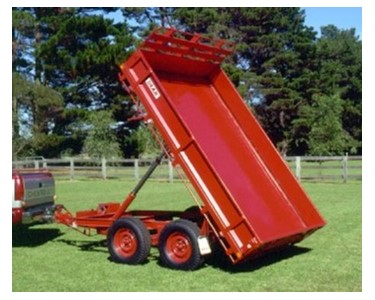

Tandem Axle Hydraulic Tipping Utility Trailer | No. 7A Get latest price

Capacities

Load capacity: 2.02 tonne
ATM: 2.9 tonne
Tare Weight: 0.88 tonne

Dimensions

Length Overall: 4.35m
Width Overall: 2.18m
Tray Size: 3.0m long x 2.025m wide
Side Height: 330mm high

Specifications

Tipping mechanism: Single acting two stage hydraulic ram, 12v power pack fitted to drawbar
Headboard: Combination 21mm diameter tube and pressed channel
Sides: Drop and removable
Tailgate: Bottom hinged with manual catch
Tie rails: 27mm OD tube welded to coaming
Suspension: AL-KO independent rubber suspension
Wheels: 14 x 5 Ford 5 stud - white
Tyres: 195/75R14C radial light truck tyres
Mudguards: Welded to tray
Mudflaps: White with Dean logo
Jockey wheel: Swivel 200mm heavy duty on drawbar
Coupling: 50mm electric ball with safety chain
Lighting: All LED multi-volt combination lamps
Electrical Connection: Flat 7 pin plug
Brakes: Electric breakaway brakes on both axles with Brake Safe Series 6000 unit
Spare wheel & tyre: Mounted on trailer
