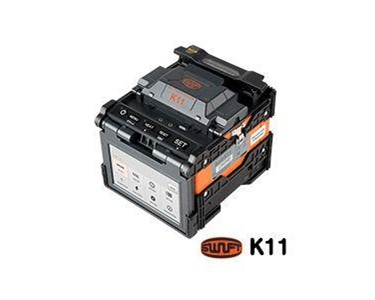

Swift - Fibre Fusion Splicers | K11

Fibre Fusion Splicers | K11

With compact, light, rugged design and long life battery, it delivers high precision performance. Furthermore, 5 inch color monitor with touch screen offers users more convenient and efficient working process.

Features & Benefits

Internet remote access maintenance

IPAAS Technology Basis Core Alignment
 Swift K11 is the core alignment splicer based on the IPAAS (Image Pattern Analysis Alignment System)
Technology. The fine pixel technology perfects lowest splice loss in average
Compact, Lightweight and Fast
 This splicer is one of the smallest, lightest and fastest among all the existing core alignment splicers.
l Dimension : 143(W) x 163(L) x 140(H) l Weight : 2.25kg l Splicing Time : 6 seconds
l Tube heat : 9sec(IS-45 Sleeve, IS-45mode),13sec(IS-60 Sleeve, IS-60mode),
Resistance to Shock, Dust and Water
 The splicer with high reliability has stable performance even in a harsh environment
l Shock-Free Fall : 76cm from 5 sides l Waterproof : IPx2 l Dustproof : IP5x
Powerful Lithium Polymer Battery with Large Capacity
 Performs 300 cycles of fusion splicing and sleeve heating with the standard battery
5 inch Color LCD Monitor with Touch Screen
 Magnification : 200X, Max 400X
 For user’s convenience, LCD monitor has been designed with touch screen in addition to
the operation keys.
Bidirectional Operation System
 For user’s ergonomic preference, the screen can be turned around for one’s chosen viewing direction.
Equipped with Sleeve Loader to Prevent Contamination and to Provide Convenience
 While working in a manhole, the loader prevents the supplementary sleeve from falling and
being contaminated.
 Working in aerial space such as telephone pole, the loader also prevents the supplementary sleeve
from falling down.

Auto-Calibration
 Detects the surrounding environment of temperature, humidity, air pressure and measures
discharge calibration rate automatically.
Compatible with Fusion Splice-On Connector(SOC) in accordance with the Industrial Standard
 MS-01, the manual stripper for Swift Connector



SPECIFICATIONS

Category Description Fiber alignment IPAAS core to core alignment(Image pattern analysis alignment system) Applicable type of fibers 0.25mm, 0.9mm, 2.0mm, 3.0mm, 4.0mm, Indoor cable Fiber count Single fiber Applicable fiber dimensions Cladding diameter: 80 ~ 150?, Coating diameter: 100?~4mm Fiber setting and cleaved length 5~16mm Splicing modes Splice mode: 300, Heat mode: 100 Typical Splice Loss SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB Return Loss > 60dB Splicing Time Typical 6sec (Quick mode) Splice loss estimate Available Sleeve heating time 9sec (IS-45 Sleeve, IS-45 mode), 13sec (IS-60 Sleeve, IS-60 mode) Applicable protection sleeve 40mm, 60mm, 32mm or 28mm for SOC, micro Storage of splice result The last 20,000 results to be stored in the internal memory. (Image 20,000 results) Tension test 1.96N ~ 2.25N Operating condition Altitude: 0~5,000m above sea level, Temperature: -10?~50?, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof Storage condition Temperature: -40?~80?, Humidity: 0~95% Dimension 143(W) x 163(L) x 140(H)mm (Without Bumper) Weight With battery 2.25kg Viewing method and display Two CMOS cameras and 5.0-inch color touch LCD Fiber view and magnification X/Y : 200X, Max 400X Power supply DC Lithium polymer battery (DC 14.8V, 4700, 6000mAh-option), 100~240V AC Adapter No. of splice cycles with battery 250cycles / 300cycles Electrode life More than 18,000 times Terminals USB



STANDARD PACKAGE

Category Model Q’ty Arc Fusion Splicer SWIFT K11 1 Battery K11-4700 1 AC Adapter WDS060190 1 Instructions for use - 1 Spare electrode EI-23 1 pair Transporting Case Hard Case 1 Colling Tray CT-01 1 Screw Driver LD-3300 1 USB Cable - 1 Manual Stripper CF-02 1 Alcohol Dispenser PP 1 Tool Box - 1 Sleeve Loader S312 1 Cleaver CI-03BT 1



OPTION PACKAGE

Category Model Battery Pack K11-4700 / K11-6000 Cleaver Blade BI-07 Electrode EI-23 Work Belt - Sleeve S-160(60mm), S-140(40mm) Sleeve Clamp SC-01 SOC Connector SC, LC, FC, ST(Refer to FTTx Solution catalogue) Optical Fiber Holder HS-250, HS-900, HS-2.5F, HS-IN, HS-SC/FC, HS-ILC, HS-ST, LS-900(Loose) External Power DC 12V Available for car cigar jack



Read more...

To contact Unitrek about Swift Fibre Fusion Splicers | K11 use Get a quote.
