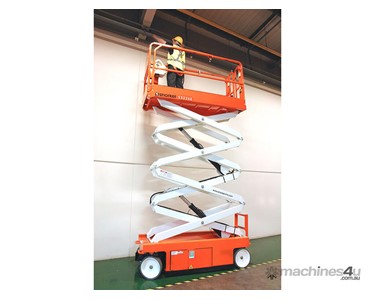

Built tough for high performance and low-maintenance operation in the rental industry.

The S3226E electric scissor lift is engineered for demanding environments, ensuring durability, operator comfort, and reduced maintenance time. It features a roll-out deck extension, non-marking tyres, proportional controls, and multiple safety functions for optimal indoor and outdoor utility.

Key Features

Roll-out deck extension with dual locks
Non-marking tyres
Swing-out service trays
Saloon-door style entry gates
Descent and all-motion alarms
Proportional controls, including descent
2-person indoor capacity
Loading pendant & power line to platform
Platform overload system
Hour meter & on-board diagnostics display
Flashing amber light
Integrated battery charger & battery condition indicator
Crane & forklift points, dual lanyard attachment points
Scissor stack roller slide plates (set of 2)
2-year parts & labour warranty; 5-year structural warranty

Specifications

Max. Working Height	9.9 m
Max. Platform Height	7.9 m
Platform Size (stowed)	0.72 m x 2.14 m
Platform Size (extended)	0.72 m x 2.6 m
Extension Deck Length	0.91 m
Overall Length (with step/without step)	2.3 m / 2.26 m
Overall Width	0.81 m
Stowed Height	2.3 m
Min Height (guardrails folded)	1.85 m
Ground Clearance (stowed/elevated)	66 mm / 19 mm
Platform Capacity (SWL)	250 kg
Max Drive Height	7.9 m
Max Wind Speed	0 m/s
Drive Speed (stowed/elevated)	3.2 km/h / 0.6 km/h
Raise/Lower Time	50/56 sec
Gradeability	25%
Inside/Outside Turning Radius	0.76 m / 2.36 m
Tyres	15 x 4 non-marking rubber
Controls	Proportional
Drive System	2 wheel drive
Power Source	24V DC battery electric
Battery Charger	90–240V, 25 amp
Weight	2,268 kg

With over 20 years' experience, the supplier provides highly reliable construction equipment, excellent customer support, and access to a wide network of service providers for long-term performance.

To contact Equipment Sales Australia about Snorkel S3226E Electric Scissor Lift use Get a quote.
