Extremely compact for confined space operation with a zero turning radius.

Key Features

Highly manoeuvrable skid steer with zero inside turning radius
Saloon-door style entry gates for easy access
1-person indoor operation
Non-marking tyres for indoor-friendly use
Proportional point & go joystick controls
Integrated battery charger and battery condition indicator
Crane points and through-the-chassis fork pockets
Selectable motion, tilt & descent alarms
Hour meter and horn for convenience
Automatic parking brake
2-year parts & labour, 5-year structural warranty

Specifications

Max. Working Height	5.0 m
Max. Platform Height	3.0 m
Platform Size	1.09 m x 0.51 m
Overall Width	0.77 m
Overall Length	1.26 m
Stowed Height	1.8 m
Ground Clearance	58 mm
Platform Capacity (SWL)	227 kg
Max. Drive Height	3.0 m
Max. Wind Speed	0 m/s (indoor use only)
Max. Drive Speed (Stowed)	3.5 km/h
Max. Drive Speed (Elevated)	0.64 km/h
Raise/Lower Time	18/25 seconds
Gradeability	25%
Max. Operating Slope	2°
Inside Turning Radius	0 m
Outside Turning Radius	1.4 m
Tyres	230 mm diameter non-marking rubber
Parking Brake	2 wheel automatic
Controls	2 axis proportional joystick
Drive System	DC direct drive
Power Source	2 x 12V 105Ah batteries
Battery Charger	100-240V 50/60Hz Auto, 30 amp
Weight	495 kg

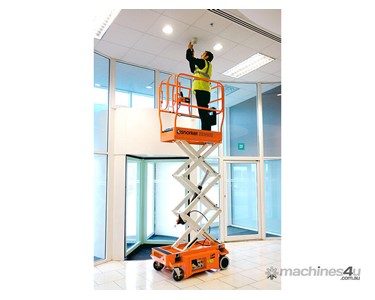

This mini scissor lift is ideal for interior maintenance and working in tight areas. Its sturdy build and thoughtful safety features ensure reliable performance in challenging indoor environments.

To contact Equipment Sales Australia about Snorkel S3010E Scissor Lift use Get a quote.
