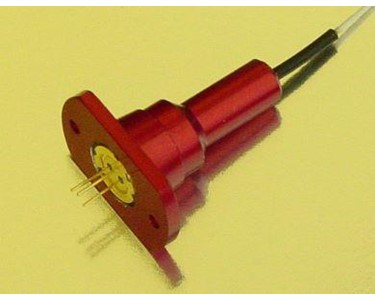

Pigtailed Laser Diode Modules (Gold) | LPD and LPF Series

Special care is taken to reduce or eliminate Fabry-Perot effect for highly sensitive applications such as interferometers.

The large flange allows for both easy mounting and TEC attachment. Their sizeable aluminum bodies also functions as an adequate heat sink for normal lab environment.



PARAMETERS	VALUES
Wavelength range	635-1790 nm
Coupling efficiency (SM)	>10% (typical: 20-30%)
Coupling efficiency (MM)	>50% (typical: >70%)
Fiber facet angle	8 degrees
Working temperature	0 to 65 C
Storage temperature	-20 to 75 C
Package style	In line
Housing material	Stainless steel and aluminum
Fiber types	Singlemode or multimode w/900 um buffer
Connector types	FC, SC, ST, SMA, or LC (and APC counterparts)
Mounting method	Flange with double holes
Weight	~10 g



Read more...

To contact LightOptronics Aust. about Princetel Inc. Pigtailed Laser Diode Modules (Gold) | LPD and LPF Series use Get a quote.
