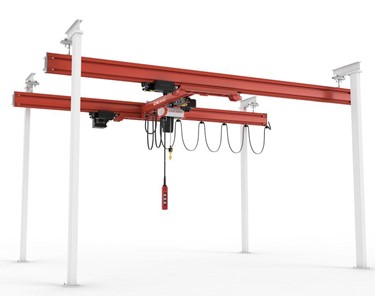

KBK steel workstation lifting system

The KBK steel workstation lifting systems are designed to provide robust, flexible lifting solutions for demanding industrial workplaces, supporting up to 2,000 kg with precise, reliable performance.

Strong, robust, and modular design supports up to 2,000 kg for demanding industrial lifting tasks.

KBK steel workstation lifting systems deliver strength, durability, and adaptability for handling heavy loads in workplaces and production lines. Engineered for ease of use and quick installation, these systems help streamline operations, lower downtime, and support repetitive, precise lifting actions.

Key Features

Robust steel runways and bridges built for demanding tasks
Modular design with multiple profile sizes & configurations:
- Monorail
- Single and double girder bridges (articulated or rigid movement)
- Freestanding structures
- Telescopic cranes
- Manipulator handling installations
Manual or motorised trolleys and bridges
Smooth-running trolleys with low rolling resistance
Service hatch for easy trolley inspection and maintenance
Energy supply via festoon or integrated conductor lines
Low headroom design
Long suspension distances and span lengths
Dust and dirt protection for longevity
Integration options with aluminium runways and bridges

?Performance Data – Single-Girder Cranes?

Technical Specifications

Intended for indoor use
Complies with EC machinery directives
Ambient temperature range: -10°C to +40°C
Minimum corrosion category: C2-M (as per DIN EN ISO 12944)
Crane control via pendant or radio
Supports up to 6 bridges on a single runway

Profile Size	Load Capacity (kg)	Max Girder Length (m)
100	80-2000	2-8
I	80-2000	3-8
II-L, II, II-H	80-2000	3-14
A12, A16, A18, A22	80-2000	3-8

Performance Data – Double-Girder Cranes?

Profile Size	Load Capacity (kg)	Max Girder Length (m)
100	250-2000	4-14
I	250-2000	5-10
II-L, II, II-H	250-2000	5-14
A12, A16, A18, A22	250-2000	4-8

Benefits

Long service life with reduced maintenance costs
Strong protection against dust and dirt
Highly modular and flexible to fit varying layouts and requirements
Exceptional utility, available as ceiling-mounted or freestanding, with multiple operating configurations
Custom specifications available upon request

To contact Konecranes and Demag about Konecranes KBK steel workstation lifting system use Get a quote.

Key Features

Robust steel runways and bridges built for demanding tasks
Modular design with multiple profile sizes & configurations:
- Monorail
- Single and double girder bridges (articulated or rigid movement)
- Freestanding structures
- Telescopic cranes
- Manipulator handling installations
Manual or motorised trolleys and bridges
Smooth-running trolleys with low rolling resistance
Service hatch for easy trolley inspection and maintenance
Energy supply via festoon or integrated conductor lines
Low headroom design
Long suspension distances and span lengths
Dust and dirt protection for longevity
Integration options with aluminium runways and bridges

?Performance Data – Single-Girder Cranes?

Technical Specifications

Intended for indoor use
Complies with EC machinery directives
Ambient temperature range: -10°C to +40°C
Minimum corrosion category: C2-M (as per DIN EN ISO 12944)
Crane control via pendant or radio
Supports up to 6 bridges on a single runway

Profile Size	Load Capacity (kg)	Max Girder Length (m)
100	80-2000	2-8
I	80-2000	3-8
II-L, II, II-H	80-2000	3-14
A12, A16, A18, A22	80-2000	3-8

Performance Data – Double-Girder Cranes?

Profile Size	Load Capacity (kg)	Max Girder Length (m)
100	250-2000	4-14
I	250-2000	5-10
II-L, II, II-H	250-2000	5-14
A12, A16, A18, A22	250-2000	4-8

Benefits

Long service life with reduced maintenance costs
Strong protection against dust and dirt
Highly modular and flexible to fit varying layouts and requirements
Exceptional utility, available as ceiling-mounted or freestanding, with multiple operating configurations
Custom specifications available upon request

Read less...

To contact Konecranes and Demag about Konecranes KBK steel workstation lifting system use Get a quote.

brochure_workstation_lifting_systems_2024(5.82MB)
