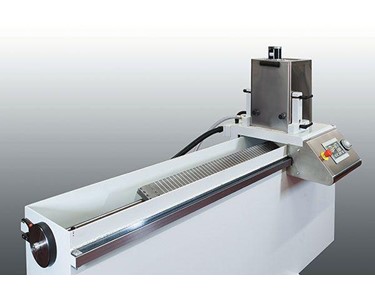

Automatic Grinding Machine | i30 HOP | ILPRO

Automatic Grinding Machine | i30 HOP | ILPRO

Features

• Important grinding capacity, electronic infeed control of the wheel; microprocessor
• Sturdy structure, easy to use, mechanic grinding wheel infeed control
• For chipper knives, granulators, miller cutters, shredder, veneer peeling, milling knives



Technical Characteristics		110	220	250	300
Grinding lengh capacity	mm	1100	2200	2500	3000
Grinding motor power	kw	3,4 - 5,5 - 7,5
External diameter of the grinding wheel	mm	150 - 178 - 200
Grinding wheel speed	m/l”	22 - 26 - 28
Maximum passage between magnetic chuck and grinding wheel	mm	110
Grinding wheel feed per stroke manual	mm	0,0025 - 0,05
Chuck width	mm	120
Feed motor power	kW	0,55
Feed motor power	kW	0,55
Pump motor power	kW	0,18
Coolant pump capacity	l/l”	30
Carriage feed speed	m/l”	0,5 - 20,0
Machine dimensions	cm (L) 250 360 360 410 cm (P) 115 115 115 115 cm (H) 180
Machine weight	Kg 1200 2000 2100 2400
Machine dimensions for spedition	cm (L) 300 400 400 460 cm (P) 150 150 150 150 cm (H) 200 200 200 200



Read more...

To contact Keymatic Technologies about Automatic Grinding Machine | i30 HOP | ILPRO use Get a quote.
