Haco - HFL-GSU3015-1500W Fiber Laser 3m x 1.5m Price Guide: $212,245

HFL-GSU3015-1500W Fiber Laser 3m x 1.5m

HFL-GSU3015-1500W Fiber Laser 3m x 1.5m

HFL-GSU3015-1500W Fiber Laser 3m x 1.5m

HFL-GSU3015-1500W Fiber Laser 3m x 1.5m

HFL-GSU3015-1500W Fiber Laser 3m x 1.5m

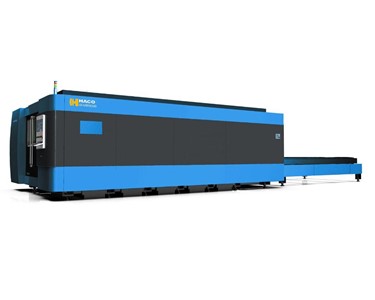

Haco - Fiber Laser Machine 1500W
Model HFL-GSU3015
Laser Type Fiber Laser IPG
Laser Power 1500 W
Stroke of X-Axis 3050mm
Stroke of Y-Axis 1520mm
Stroke of Z-Axis 290mm

Machine Dimension 8500*2850*2500 mm
Gross weight 8000 kg

Cutting Parameters
Material Max cutting thickness 1500W
Mild steel 16 mm 12 mm Pierce
Stainless Steel 6 mm
Aluminum Alloy 4 mm
Brass 3 mm

Accessories included
Control Software Cypcut Most popular control system
Nesting software Integrated with Cypcut
IPC High stability industry PC
Exhaust Blower Standard Configuration (not fume-dust this is optional at more-price)
Voltage Regulator Standard Configuration
Inner Camera Standard Configuration
Automatic lubrication system Standard Configuration
Collect Trolley Standard Configuration
Remote Control Standard Configuration

Options
Precitec Laser Head
Dust-Fume Collector

To contact HACO Australia about Haco HFL-GSU3015-1500W Fiber Laser 3m x 1.5m use Get a quote.

Haco - Fiber Laser Machine 1500W
Model HFL-GSU3015
Laser Type Fiber Laser IPG
Laser Power 1500 W
Stroke of X-Axis 3050mm
Stroke of Y-Axis 1520mm
Stroke of Z-Axis 290mm

Machine Dimension 8500*2850*2500 mm
Gross weight 8000 kg

Cutting Parameters
Material Max cutting thickness 1500W
Mild steel 16 mm 12 mm Pierce
Stainless Steel 6 mm
Aluminum Alloy 4 mm
Brass 3 mm

Accessories included
Control Software Cypcut Most popular control system
Nesting software Integrated with Cypcut
IPC High stability industry PC
Exhaust Blower Standard Configuration (not fume-dust this is optional at more-price)
Voltage Regulator Standard Configuration
Inner Camera Standard Configuration
Automatic lubrication system Standard Configuration
Collect Trolley Standard Configuration
Remote Control Standard Configuration

Options
Precitec Laser Head
Dust-Fume Collector

Read less...

To contact HACO Australia about Haco HFL-GSU3015-1500W Fiber Laser 3m x 1.5m use Get a quote.

Haco Aus Catalog 2021 HFL(4.49MB)
