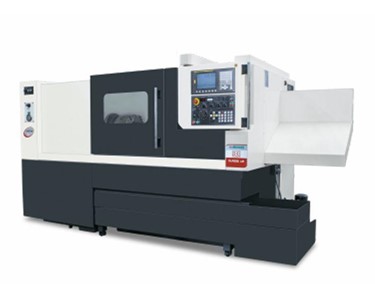

CNC Lathe | Classic Series

The Classic Series offers robust and precise machining solutions with features like a high-torque spindle motor, bi-directional tool turret, and thermally seasoned bed for stability.

Receive 1-3 days from order

Ideal for heavy stock removal and accurate machining, it ensures enhanced performance and reliability for diverse industrial applications.

The Classic Series offers a range of advanced machining solutions designed for precision and efficiency. The bed is made from fine grain Grade 25 cast iron with a box-type construction, providing rigidity and stability. The high-torque spindle motor ensures powerful performance for heavy stock removal, while the bi-directional tool turret allows for quick and precise tool changes. The thermally seasoned bed is designed for easy chip flow and removal, enhancing long-term accuracy. The machine also features an overload tripping clutch to minimize damage in case of accidents. The X and Z axes are equipped with high precision ball screws supported by precision class ball screw support bearings, ensuring stability and accuracy. Additionally, the tailstock is hydraulically operated and supported on V and flat guideways, providing rigidity and ease of use. These features make the Classic Series ideal for diverse industrial applications, offering enhanced performance and reliability.

Standard Inclusions

Cartridge type spindle
AC spindle drives
AC axes drives
High speed bi-directional tool turret
Linear Motion Guideways
Turcite anti-slipstick liners on slide way surfaces
Tailstock with Add-on type live centre
Automatic centralized oil lubrication
Built-in lighting system & overload trip clutch for axes
OD tool holder damping blocks (8)
Boring bar holder (4)
Facing tool holder (2)
Set of sleeves
Coolant systems with side tray
Programmable quill

Optional Extras

Fully tooled up solutions to meet customer needs
Chip conveyor at side or rear
A wide variety of power operated work-holding (chucks, collets, fixtures, etc.) and tooling
12 station Turret (Other than Turnmill)
Auto door
Tool touch probe
Parts catcher
Bar feeder
Programmable Tailstock
Steady Rest
VDI Disc on Turret
A2–8 spindle
Manual guide i
Door interlock
Built-in live center for Tailstock
Torque enhancement
