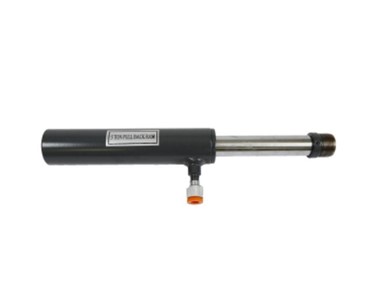

Hydraulic Rams I Pull Back Ram 5,000kg

Attaches with an easy installation ZG 1/4in. half coupler fitting. This 5,000kg pull back ram works with Borum hydraulic pumps to pull, bend and straighten metal. Working up to 8,800psi, this hydraulic pull back ram can be used vertically or horizontally.

Borum Industrial hydraulic rams are designed for all kinds of power operations and are ideal for working in tight spaces. Borum hydraulic rams come with a quick connect couplers and feature polyurethane seals for a long service life.

The Borum Industrial hydraulic ram range includes puller rams and pusher rams for lifting, pushing, pulling, bending, and straightening. A must for a variety of auto body, frame repair, and construction jobs. Ram and cylinder bearings are designed for protection against off-centre load stresses. All are fitted with high flow quick-connect couplers with dust cap.

Features:

• Constructed of high-grade steel and built to exacting quality standards
• Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish
• Paint is oil, grease and dirt-resistant for easy cleanup
• High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load
• Piston-ram is treated and polished for durability and longevity
• Polyurethane sealing ring with backup ring, prevents load from retracting slowly or bypassing oil drift
• High/low temperature flexibility allows the unit to operate at temperatures between 5°C and 40°C
• Automatic return spring returns ram to collapsed position without a load
• High-performance wiper seal reduces contamination and extends cylinder life
• Screw extension provides added versatility

Specifications:

• Safe Working Capacity: 5,000kg
• Max Hydraulic Pressure: 8,800psi
• Extended Length: 455mm
• Stroke: 150mm

Read more...

To contact TQB Brands about Borum Industrial Hydraulic Rams I Pull Back Ram 5,000kg use Get a quote.

Attaches with an easy installation ZG 1/4in. half coupler fitting. This 5,000kg pull back ram works with Borum hydraulic pumps to pull, bend and straighten metal. Working up to 8,800psi, this hydraulic pull back ram can be used vertically or horizontally.

Borum Industrial hydraulic rams are designed for all kinds of power operations and are ideal for working in tight spaces. Borum hydraulic rams come with a quick connect couplers and feature polyurethane seals for a long service life.

The Borum Industrial hydraulic ram range includes puller rams and pusher rams for lifting, pushing, pulling, bending, and straightening. A must for a variety of auto body, frame repair, and construction jobs. Ram and cylinder bearings are designed for protection against off-centre load stresses. All are fitted with high flow quick-connect couplers with dust cap.

Features:

• Constructed of high-grade steel and built to exacting quality standards
• Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish
• Paint is oil, grease and dirt-resistant for easy cleanup
• High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load
• Piston-ram is treated and polished for durability and longevity
• Polyurethane sealing ring with backup ring, prevents load from retracting slowly or bypassing oil drift
• High/low temperature flexibility allows the unit to operate at temperatures between 5°C and 40°C
• Automatic return spring returns ram to collapsed position without a load
• High-performance wiper seal reduces contamination and extends cylinder life
• Screw extension provides added versatility

Specifications:

• Safe Working Capacity: 5,000kg
• Max Hydraulic Pressure: 8,800psi
• Extended Length: 455mm
• Stroke: 150mm

Read less...

To contact TQB Brands about Borum Industrial Hydraulic Rams I Pull Back Ram 5,000kg use Get a quote.

Borum Rams Brochure(4.51MB)
