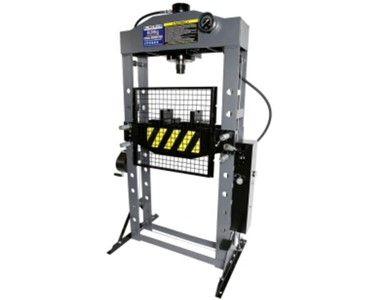

Borum Industrial - Hydraulic Press 50,000kg

Hydraulic Press 50,000kg

Features:

• Heavy-duty H-frame manufactured of superior-grade steel to exacting standards for industrial quality and durability
• 2 speed foot & hand pump operates the ram at a slow or fast speed to improve operator efficiency
• Non-slip bed winch and steel cable roller offers easy raising and lowering of the press bed
• Steel mesh safety cage provides operator safety and visibility
• 100mm pressure gauge ensures accurate monitoring
• Superior quality hydraulic cylinder unit requires lower oil pressure to apply load, reducing wear and extending service life
• Treated & polished ram is fitted with heavy duty backup ring, preventing bypass oil drift
• Superior quality hydraulic oil, improves corrosion resistance and high/low temperature flexibility
• Integrated overload protection eliminates overloading
• Double spring ram return for fast ram retraction
• Lead-free paint for a long-lasting finish and to minimise corrosion
• Oil, grease and dirt-resistant paint finish for easy cleanup
• Pair of bed plates included

Specifications:

• Safe Working Capacity: 50,000kg
• Working Range: 88-1068mm
• Overall Height: 1918mm
• Overall Width: 1030mm
• Overall Depth: 750mm
• Bed Outside: 220mm
• Bed Inside: 147mm
• Bed Width: 730mm
• Piston Ram Stroke: 175mm
• Ram Diameter: 60mm
• Bed Height Settings: 9
• Crate: 2120 x 980 x 320mm
• Weight: 307kg

Read more...

To contact TQB Brands about Borum Industrial Hydraulic Press 50,000kg use Get a quote.

Features:

• Heavy-duty H-frame manufactured of superior-grade steel to exacting standards for industrial quality and durability
• 2 speed foot & hand pump operates the ram at a slow or fast speed to improve operator efficiency
• Non-slip bed winch and steel cable roller offers easy raising and lowering of the press bed
• Steel mesh safety cage provides operator safety and visibility
• 100mm pressure gauge ensures accurate monitoring
• Superior quality hydraulic cylinder unit requires lower oil pressure to apply load, reducing wear and extending service life
• Treated & polished ram is fitted with heavy duty backup ring, preventing bypass oil drift
• Superior quality hydraulic oil, improves corrosion resistance and high/low temperature flexibility
• Integrated overload protection eliminates overloading
• Double spring ram return for fast ram retraction
• Lead-free paint for a long-lasting finish and to minimise corrosion
• Oil, grease and dirt-resistant paint finish for easy cleanup
• Pair of bed plates included

Specifications:

• Safe Working Capacity: 50,000kg
• Working Range: 88-1068mm
• Overall Height: 1918mm
• Overall Width: 1030mm
• Overall Depth: 750mm
• Bed Outside: 220mm
• Bed Inside: 147mm
• Bed Width: 730mm
• Piston Ram Stroke: 175mm
• Ram Diameter: 60mm
• Bed Height Settings: 9
• Crate: 2120 x 980 x 320mm
• Weight: 307kg

Read less...

To contact TQB Brands about Borum Industrial Hydraulic Press 50,000kg use Get a quote.

Borum Press BPROSP50T Brochure(3.29MB)
