Borum Industrial - Drilling Equipments I Pedestal Drill 16Speed 3/4HP

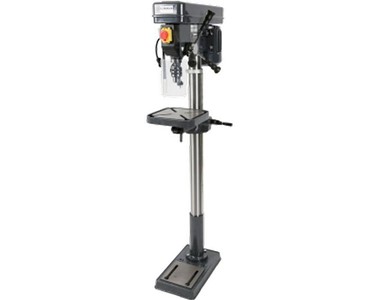

Drilling Equipments I Pedestal Drill 16Speed 3/4HP

Equipped with 16 drilling speeds from 162 to 3,000rpm and a 16mm drilling capacity this robust and user-friendly drill press is ideal for a busy maintenance workshop or small production factory.

Perfect for fabricators looking for a drill press that's rugged enough to handle the demands of light and medium duty production work and accurate enough to consistently deliver precise results.

Features:

• Flexible worklight
• Oversize micro-switch activated safety guard
• Engineering style work table
• Ergonomic handles
• Low-noise belt drive with cast iron balanced pulleys ensures low maintenance and quiet operation
• Safety ON-OFF switch fitted with a dust cover and positive action push buttons plus a large (Red) self locking "Emergency Stop" hinge cover
• Precision spindle bearing for long life and high accuracy
• Table control via hand crank and gear rack is robust with high load capacity
• Long quill stroke with easy to adjust depth stop at the capstan handle
• Thick-walled, precision-ground column for extra rigidity
• Powerful long-life commercial drive motor provides high reliability even at continuous loads
• Ground set-up areas on table and base plate
• Solid rotating work table with diagonal clamping slots

Specifications:

• Motor: 240V 3/4HP
• Number of Speeds: 16
• Spindle Speeds: 162-3000rpm
• Maximum Drilling Capacity: 16mm
• Spindle Taper: MT2
• Chuck: 16mm
• Maximum Spindle Stroke: 78mm
• Swing: 350mm
• Maximum Distance from Spindle to Table: 781mm
• Maximum Distance from Spindle to Base: 1219mm
• Diameter of Column: 73mm
• Diameter of Table: 290mm
• Size of Base: 450x265mm
• Overall Height: 1588mm
• Weight: 55kg
• Carton: 1370 x 460 x 230mm

Read more...

To contact TQB Brands about Borum Industrial Drilling Equipments I Pedestal Drill 16Speed 3/4HP use Get a quote.

Equipped with 16 drilling speeds from 162 to 3,000rpm and a 16mm drilling capacity this robust and user-friendly drill press is ideal for a busy maintenance workshop or small production factory.

Perfect for fabricators looking for a drill press that's rugged enough to handle the demands of light and medium duty production work and accurate enough to consistently deliver precise results.

Features:

• Flexible worklight
• Oversize micro-switch activated safety guard
• Engineering style work table
• Ergonomic handles
• Low-noise belt drive with cast iron balanced pulleys ensures low maintenance and quiet operation
• Safety ON-OFF switch fitted with a dust cover and positive action push buttons plus a large (Red) self locking "Emergency Stop" hinge cover
• Precision spindle bearing for long life and high accuracy
• Table control via hand crank and gear rack is robust with high load capacity
• Long quill stroke with easy to adjust depth stop at the capstan handle
• Thick-walled, precision-ground column for extra rigidity
• Powerful long-life commercial drive motor provides high reliability even at continuous loads
• Ground set-up areas on table and base plate
• Solid rotating work table with diagonal clamping slots

Specifications:

• Motor: 240V 3/4HP
• Number of Speeds: 16
• Spindle Speeds: 162-3000rpm
• Maximum Drilling Capacity: 16mm
• Spindle Taper: MT2
• Chuck: 16mm
• Maximum Spindle Stroke: 78mm
• Swing: 350mm
• Maximum Distance from Spindle to Table: 781mm
• Maximum Distance from Spindle to Base: 1219mm
• Diameter of Column: 73mm
• Diameter of Table: 290mm
• Size of Base: 450x265mm
• Overall Height: 1588mm
• Weight: 55kg
• Carton: 1370 x 460 x 230mm

Read less...

To contact TQB Brands about Borum Industrial Drilling Equipments I Pedestal Drill 16Speed 3/4HP use Get a quote.

Borum Drill Brochure(2.37MB)
