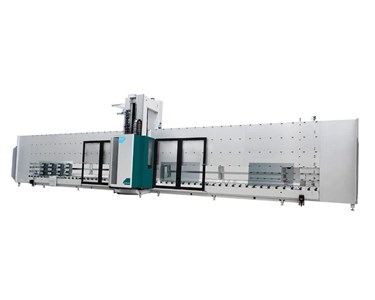

Biesse Intermac Multi Pro M V0X Vertical machining centre

Outstanding productivity in a vertical dimension
Capable to perform drilling, milling and arising in a quick and easy way, with the most advanced solutions out on the market.
Boost your production with speed and quality, without any more need to setup the machine for processing.

"Helix" your drill
With the Helix system, both drilling and countersinking are performed by the single front head, ensuring that the suction cup position has no impact on the process.
Enjoy seamless precision and efficiency throughout.

Stay centered, stay stable
The pilot system is designed to securely hold the glass and follow its shape, reducing vibrations during grinding and polishing, which enhances the overall finish quality.
Driven by the C Axis, the pilot system clamps the glass’s outer perimeter. A pair of anti-friction copiers keeps the glass centered and stable, ensuring a consistent bevel and flawless finish.

Rock solid frame
The machine's robust structure is key to ensuring vibration-free movements, resulting in superior glass quality.
It also enhances long-term reliability, as the components withstand extreme stresses.
The central unit houses two powerful spindles, supported by the most solid tower available in the vertical machine market.

Smart Shuttles
The dynamic repositioning system of the suction cup carriages is designed to process a workpiece without ever leaving it stranded between the carriages. Each suction cup is activated and deactivated as needed by the program.
This results in faster processing and the ability to handle unstable glass sheets that conventional vertical machines cannot process.
Thanks to intelligent suction cup management, we also manage glass scrap by automatically holding it in place with a suction cup, preventing it from falling off.

We do it for you
The self-learning system ensures the correct sequence of tools is applied and automatically adjusts the position and machining of internal cutting or hole profiles.
By detecting the glass thickness, it prevents programming errors, optimizing both productivity and flexibility.
The software automatically selects the appropriate tools based on the detected thickness.

Safety with no compromises
We feature advanced safety solutions, including LaserScanner protection that defines secure areas where no objects can enter while the operator works safely at the PC station.
If a foreign object or the operator enters the safety zone, the machine stops and power to the axes is cut. This ensures maximum operational safety.
The system complies with the EN ISO 13849-1 Functional Safety standard, supporting Performance Level requirements and it's PL-D compliant.

Structural glass
We can process glass up to 3300mm in height and 6000mm in length, handling full jumbo glass sizes with thicknesses up to 30mm.

Balustrades
Ideal for all types of balustrades, it can mill notches and slots, edge profiles, and handle everything all at once.

Interior design
We can process both squared and shaped glass, with a few limitations such as a straight side and minimum radii.
With three machine sizes to choose from, almost any design can be handled.

Please contact us for more information.
