Specifications

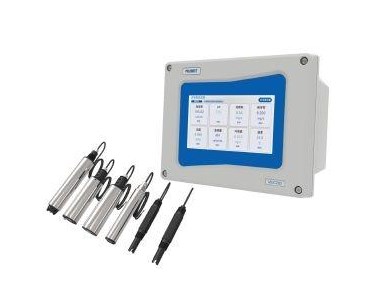

The APS Multi-Parameter Online Water Quality Analyser is a modular online monitoring platform designed for continuous measurement of multiple water quality parameters in industrial and municipal applications. The system supports simultaneous monitoring of up to seven sensors and is expandable with a broad range of digital probes.

Typical Specifications

• Simultaneous monitoring of up to 7 parameters

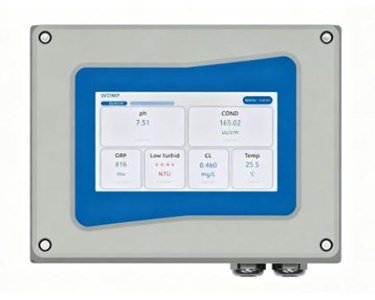

• 7-inch colour touchscreen display
• Modular sensor architecture
• Modbus RS485 communication
• 4–20 mA analogue outputs
• Relay alarm outputs
• Data logging and alarm functions
• IP65 industrial enclosure
• Wall or panel mounting
• 90–260 VAC power supply (model dependent)
• Supports digital sensors for:
  • pH
  • ORP
  • Conductivity (EC)
  • Dissolved Oxygen (DO)
  • Turbidity
  • Residual Chlorine
  • Temperature
  • Suspended Solids (SS)
  • COD
  • Ammonia
  • Nitrate
  • Blue-Green Algae
  • Chlorophyll
• Features
  • Continuous 24/7 online water quality monitoring
  • Modular platform supporting multiple sensor combinations
  • Real-time display of multiple water quality parameters
  • High accuracy industrial-grade sensors
  • Automatic temperature compensation
  • Configurable alarm and relay outputs
  • RS485 Modbus integration with PLC, SCADA and BMS systems
  • 4–20 mA outputs for legacy control systems
  • Suitable for indoor and outdoor installations
  • Expandable as monitoring requirements change
  • Compatible with immersion and flow-through sensor installations depending on the application
  • Additional specialised water quality sensors
    ?


Applications

• The APS Multi-Parameter Online Water Quality Analyser is suitable for a wide range of water monitoring applications, including:
• Water & Wastewater
• Drinking water treatment
• Municipal water treatment plants
• Wastewater treatment facilities
• Recycled water systems
• Desalination plants
• Commercial Water Systems
• Commercial swimming pools
• Aquatic centres
• Water parks
• Hotels and resorts
• Cooling towers
• Boiler water monitoring
• Industrial Process Water
• Food and beverage manufacturing
• Pharmaceutical production
• Chemical processing
• Mining operations
• Power generation
• Steel and metallurgy
• Manufacturing plants
• Environmental Monitoring
• Rivers
• Lakes
• Reservoirs
• Surface water monitoring
• Environmental compliance monitoring
• Aquaculture
• Fish farms
• Hatcheries

Why Choose the APS Multi-Parameter Online Water Quality Analyser?

• Unlike conventional single-parameter instruments, the APS Multi-Parameter Online Water Quality Analyser provides a scalable platform that can monitor multiple water quality parameters from a single controller. This reduces installation complexity, simplifies maintenance and lowers overall system costs.
• The modular design allows customers to select only the sensors required for their application today, while retaining the flexibility to expand the system as future monitoring requirements evolve.
• When combined with APS pump controllers, ultrasonic flow meters and Industrial IoT solutions, the analyser becomes part of a complete water automation platform capable of monitoring water quality, flow, pump performance and energy consumption from a single integrated solution.
• Key Benefits
• One controller for multiple water quality parameters
• Lower installation and maintenance costs
• Modular and expandable architecture
• Industrial communication via Modbus RS485 and analogue outputs
• Suitable for both new installations and retrofit projects
• Integrates seamlessly into SCADA, PLC and Building Management Systems
• Supported by APS Technology Australia with local technical assistance and application engineering
• Aquaculture water quality management
