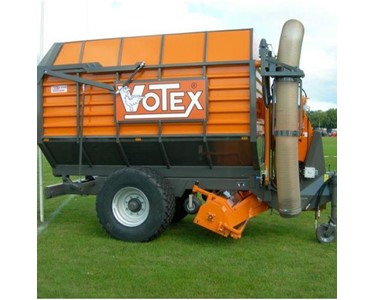

Votex - Vacuum Trailer with Capacity - VT1100

Vacuum Trailer with Capacity - VT1100

The VT1100 is a vacuum trailer for maintenance of parks etc. Due to the big container, this is the trailer for communities and contractors who are looking for even more capacity.

The container is short and high to keep the overall length and width small. The container tilts hydraulically and has an automatic opening tailgate. Turbine and housing are made of durable materials.

Several options are possible, like a suction hose with an oscillation system for leafs on the road sides, a funnel of 2.0 meter wide for sports fields, golf courses and parks and a scarifier shaft to scarify and clean in one shift. The VT1100 is a sturdy trailer with maximum capacity.

Specifications

• Frame
  • Drawbar Upper- or lower drawbar
  • Brakes Hydraulic-, pneumatic- or overrun brakes.
  • Tyres 500-60/22.5 or 500/60 R 22.5
• Turbine
  • Construction turbine 10 mm. hardox
  • Construction turbine housing 16 mm. hardox
• Suction boom with oscillating system (option)
  • Side shift 100 cm
  • Height lift 50 cm or 130 cm (option)
  • Oscillating system Standard with hydraulic motor
  • Suction hose Super duty Ø 300 mm
• Funnel (option)
  • Working width 195 cm
  • Transport width 223 cm
  • Brush shaft Standard, hydraulic propelled
• Scarifier (option)
  • Working width 195 cm
  • Transport width 223 cm
  • Scarifier shaft Hardox, 42 knives, mechanically driven
• Dimensions
  • Net weight 2.800 kg
  • Length 565 cm
  • Width (standard/funnel/boom/funnel+boom) 195/223/206/223 cm
  • Height (standard/boom) 325 cm
  • Container 11 m



Read more...

To contact Stocker-Crew about Votex Vacuum Trailer with Capacity - VT1100 use Get a quote.

The VT1100 is a vacuum trailer for maintenance of parks etc. Due to the big container, this is the trailer for communities and contractors who are looking for even more capacity.

The container is short and high to keep the overall length and width small. The container tilts hydraulically and has an automatic opening tailgate. Turbine and housing are made of durable materials.

Several options are possible, like a suction hose with an oscillation system for leafs on the road sides, a funnel of 2.0 meter wide for sports fields, golf courses and parks and a scarifier shaft to scarify and clean in one shift. The VT1100 is a sturdy trailer with maximum capacity.

Specifications

• Frame
  • Drawbar Upper- or lower drawbar
  • Brakes Hydraulic-, pneumatic- or overrun brakes.
  • Tyres 500-60/22.5 or 500/60 R 22.5
• Turbine
  • Construction turbine 10 mm. hardox
  • Construction turbine housing 16 mm. hardox
• Suction boom with oscillating system (option)
  • Side shift 100 cm
  • Height lift 50 cm or 130 cm (option)
  • Oscillating system Standard with hydraulic motor
  • Suction hose Super duty Ø 300 mm
• Funnel (option)
  • Working width 195 cm
  • Transport width 223 cm
  • Brush shaft Standard, hydraulic propelled
• Scarifier (option)
  • Working width 195 cm
  • Transport width 223 cm
  • Scarifier shaft Hardox, 42 knives, mechanically driven
• Dimensions
  • Net weight 2.800 kg
  • Length 565 cm
  • Width (standard/funnel/boom/funnel+boom) 195/223/206/223 cm
  • Height (standard/boom) 325 cm
  • Container 11 m
