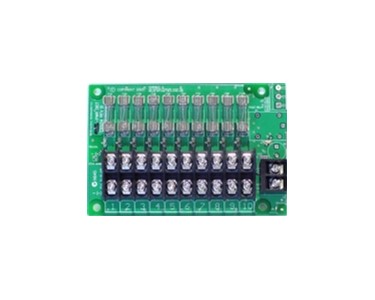

Power Distribution Module | PDM1

Power Distribution Module | PDM1

Features:

• 10 x Fused Outputs
• 10 x LED Circuit Status Indicators
• Heavy Duty Screw Terminals
• 4 x Adhesive Mounting Feet

Specifications:

• Input Voltage: Up to 30V AC or DC
• Outputs: 10 x fused (M205 Glass Fuse)
• Total Current: 10A Maximum
• Dimensions: 110 L x 81 D x 34 H mm
• Weight: 115 gm

Featuring state-of-the-art Surface Mount Technology and 10 individual fused circuits - each with an LED to indicate fuse status, the PDM1 is available with a variety of fuse ratings to suit your application - please specify 250mA, 500mA or 1A fuses at time of order (1A supplied unless otherwise specified).

Installer should assess the current draw of each connected device and fit a fast-blow fuse of appropriate rating to suit that device, whilst not exceeding the rating of the connected power supply.

Most Tactical Technologies Power Supplies may be ordered "ready to install" with PDM module(s) wired & fitted in heavy-duty metal cabinets of various sizes - check with your supplier.

To contact Tactical Technologies about Power Distribution Module | PDM1 use Get a quote.

Features:

• 10 x Fused Outputs
• 10 x LED Circuit Status Indicators
• Heavy Duty Screw Terminals
• 4 x Adhesive Mounting Feet

Specifications:

• Input Voltage: Up to 30V AC or DC
• Outputs: 10 x fused (M205 Glass Fuse)
• Total Current: 10A Maximum
• Dimensions: 110 L x 81 D x 34 H mm
• Weight: 115 gm

Featuring state-of-the-art Surface Mount Technology and 10 individual fused circuits - each with an LED to indicate fuse status, the PDM1 is available with a variety of fuse ratings to suit your application - please specify 250mA, 500mA or 1A fuses at time of order (1A supplied unless otherwise specified).

Installer should assess the current draw of each connected device and fit a fast-blow fuse of appropriate rating to suit that device, whilst not exceeding the rating of the connected power supply.

Most Tactical Technologies Power Supplies may be ordered "ready to install" with PDM module(s) wired & fitted in heavy-duty metal cabinets of various sizes - check with your supplier.
