NRU-120S - NVIDIA Jetson AGX Xavier Powered Edge AI Solution

NRU-120S - NVIDIA Jetson AGX Xavier Powered Edge AI Solution

NRU-120S - NVIDIA Jetson AGX Xavier Powered Edge AI Solution

NRU-120S - NVIDIA Jetson AGX Xavier Powered Edge AI Solution

NRU-120S - NVIDIA Jetson AGX Xavier Powered Edge AI Solution

The future of Edge AI Technology applications will be popularized and found in our everyday life. The Neousys NRU-120S offers a unique solution for emerging Edge AI applications by providing a Rugged, Fanless Platform consuming only 30W while offering equivalent GPU performances to a mainstream 120W GPU.

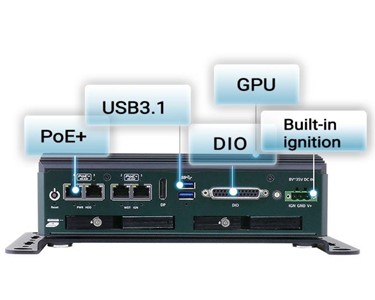

The NRU-120S offers plenty of I/O connections. It has four Gigabit 802.3at PoE+ ports that can supply 25.5W power to PD devices. For data storage, in addition to 32GB eMMC on the Xavier module, the Edge AI Solution is equipped with an M.2 2280 NVMe socket for fast SSD read/write and two hot-swappable 2.5" HDD trays for easy replacement and data access. There is also one mini-PCIe socket for WiFi or 4G module, as well as 1x GPS PPS input for cross-platform synchronization, 3-CH isolated DI, and 4-CH isolated DO for communication with external devices.

The one-stop intelligent video analytics solution incorporates seamless IP camera connectivity, H.264/H.265 video stream transcoding, significant TFLOPS for inference, and visualization of real-time insight. It is a scalable solution for AI applications in Smart City and Smart Retail.

Plus the support of industrial GigE cameras, the NRU-120S can also adopt deep-learning vision solutions in Inspection, Smart Agriculture, and Automated Warehouse. With its rugged and low power design, the NRU-120S enables Edge AI in harsh environments, from dusty factories to the roadside with huge day and night temperature difference.

Key Features:

• Powered by NVIDIA® Jetson AGX Xavier™ SOM Bundled with JetPack 4.4
• 4x IEEE 802.3at Gigabit PoE+ Ports with Screw-Lock
• 2x Front-Accessible, Hot-Swappable 2.5" HDD Trays
• 1x M.2 2280 M Key Socket for NVMe SSD
• 1x Mini PCIe Socket for WIFI/4G Module
• 1x Isolated CAN Bus Port and 1x RS232 Port with Flow Control
• 1x GPS PPS Input, 3-CH Isolated DI, and 4-CH Isolated DO
• 8V to 35V Wide-Range DC Input with Built-In Ignition Power Control

Read more...

To contact Backplane Systems Technology about Neousys NRU-120S - NVIDIA Jetson AGX Xavier Powered Edge AI Solution use Get a quote.

The future of Edge AI Technology applications will be popularized and found in our everyday life. The Neousys NRU-120S offers a unique solution for emerging Edge AI applications by providing a Rugged, Fanless Platform consuming only 30W while offering equivalent GPU performances to a mainstream 120W GPU.

The NRU-120S offers plenty of I/O connections. It has four Gigabit 802.3at PoE+ ports that can supply 25.5W power to PD devices. For data storage, in addition to 32GB eMMC on the Xavier module, the Edge AI Solution is equipped with an M.2 2280 NVMe socket for fast SSD read/write and two hot-swappable 2.5" HDD trays for easy replacement and data access. There is also one mini-PCIe socket for WiFi or 4G module, as well as 1x GPS PPS input for cross-platform synchronization, 3-CH isolated DI, and 4-CH isolated DO for communication with external devices.

The one-stop intelligent video analytics solution incorporates seamless IP camera connectivity, H.264/H.265 video stream transcoding, significant TFLOPS for inference, and visualization of real-time insight. It is a scalable solution for AI applications in Smart City and Smart Retail.

Plus the support of industrial GigE cameras, the NRU-120S can also adopt deep-learning vision solutions in Inspection, Smart Agriculture, and Automated Warehouse. With its rugged and low power design, the NRU-120S enables Edge AI in harsh environments, from dusty factories to the roadside with huge day and night temperature difference.

Key Features:

• Powered by NVIDIA® Jetson AGX Xavier™ SOM Bundled with JetPack 4.4
• 4x IEEE 802.3at Gigabit PoE+ Ports with Screw-Lock
• 2x Front-Accessible, Hot-Swappable 2.5" HDD Trays
• 1x M.2 2280 M Key Socket for NVMe SSD
• 1x Mini PCIe Socket for WIFI/4G Module
• 1x Isolated CAN Bus Port and 1x RS232 Port with Flow Control
• 1x GPS PPS Input, 3-CH Isolated DI, and 4-CH Isolated DO
• 8V to 35V Wide-Range DC Input with Built-In Ignition Power Control

Read less...

To contact Backplane Systems Technology about Neousys NRU-120S - NVIDIA Jetson AGX Xavier Powered Edge AI Solution use Get a quote.

nru-120s-nvidia-jason-embedded-video-analytics-platform_DATASHEET_EDITED(0.26MB)
