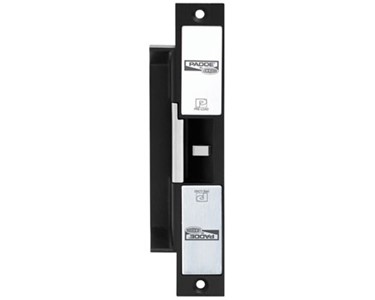

Lockwood - Padde ES9000 Pre Load Strike

ES9000 Pre Load Electric Strike

Pre-load is a common condition that is caused by pulling on a door before it unlocks, the weight of warped or drooping doors, seals on fire doors, or by differential air pressure created when heating and cooling systems are in use.

Standard features include multi voltage 10 - 30Vdc and field changeable settings from fail safe to fail secure.

Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.

Key Features of the Padde ES9000 Pre-Load Strike

• Operates under pre load up to 25kg
• Easy field selectable fail safe/fail secure
• Multi voltage 10-30Vdc
• 1300kg holding force
• 2.5 million cycles endurance rating
• Latch keeper is significantly quieter in operation
• Weather resistant
• Mounting tabs as standard
• Non handed
• Australian designed and made
• Tricare® 5 Year Warranty

Applications of the Padde ES9000 Pre-Load Strike

• High traffic areas
• Doors subjected to side load (pre load)
• Fire rated door sets
• Open in/open out doors
• Suitable for use with all access control systems

Standards and Compliance

• S3 (Security) Australian Lock Standard (AS4145.2.1993)
• D3 (Durability) Australian Lock Standard (AS4145.2.1993)
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
• CE Approved
• C-Tick Certified

Read more...

To contact Lockwood | ASSA ABLOY about Lockwood Padde ES9000 Pre Load Strike use Get a quote.
