IEI Integration Corp. - PPC-F17D-ULT5 17” 8th Gen Intel® Whiskey Lake-U Industrial Panel PC

PPC-F17D-ULT5 17” 8th Gen Intel® Whiskey Lake-U Industrial Panel PC

PPC-F17D-ULT5 17” 8th Gen Intel® Whiskey Lake-U Industrial Panel PC

The PPC-F17D-ULT5 is inclusive of extensive memory, with 2 x 260-pin 2400 MHz dual-channel DDR4 unbuffered SO-DIMM supporting up to 32GB. Likewise, PPC-F17D-ULT5 includes 4 x USB 3.2 Gen 2 (10Gbps), 3 x GbE LAN (2 for PoE PD GbE LAN), and 1 x NGFF M.2 2280 M Key (support PCIe 3.0 x4 NVMe) for optimal operation.

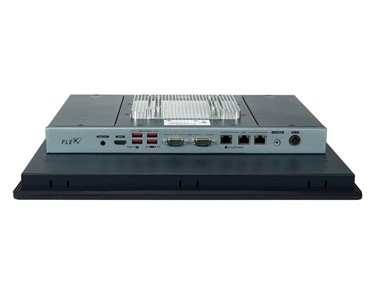

Moreover, the PPC-F17D-ULT5 can stand the test of time as it’s front frame is composed of aluminum die-casting and the rear cover is of sheet metal. In addition, the front panel is water and dust resistant and meets an IP66 protection rating. Similarly, PPC-17D-ULT5 can adjust in varying temperatures, since its operating temperature ranges from -10°C ~ + 50°C with a humidity range of -10% ~ +95% (non-condensing).

KEY FEATURES:

• 17” Panel PC with 8th Gen Intel® Whiskey Lake-U Processors
• Low Power Consumption and Fanless Design
• IP66-Rated Front Panel for Water and Dust Resistance
• Touch Screen with Anti-UV / Anti-Glare Coating
• Support PoE PD Power
• Support NVMe SSD



To contact ICP Electronics about IEI Integration Corp. PPC-F17D-ULT5 17” 8th Gen Intel® Whiskey Lake-U Industrial Panel PC use Get a quote.

The PPC-F17D-ULT5 is inclusive of extensive memory, with 2 x 260-pin 2400 MHz dual-channel DDR4 unbuffered SO-DIMM supporting up to 32GB. Likewise, PPC-F17D-ULT5 includes 4 x USB 3.2 Gen 2 (10Gbps), 3 x GbE LAN (2 for PoE PD GbE LAN), and 1 x NGFF M.2 2280 M Key (support PCIe 3.0 x4 NVMe) for optimal operation.

Moreover, the PPC-F17D-ULT5 can stand the test of time as it’s front frame is composed of aluminum die-casting and the rear cover is of sheet metal. In addition, the front panel is water and dust resistant and meets an IP66 protection rating. Similarly, PPC-17D-ULT5 can adjust in varying temperatures, since its operating temperature ranges from -10°C ~ + 50°C with a humidity range of -10% ~ +95% (non-condensing).

KEY FEATURES:

• 17” Panel PC with 8th Gen Intel® Whiskey Lake-U Processors
• Low Power Consumption and Fanless Design
• IP66-Rated Front Panel for Water and Dust Resistance
• Touch Screen with Anti-UV / Anti-Glare Coating
• Support PoE PD Power
• Support NVMe SSD



Read less...

To contact ICP Electronics about IEI Integration Corp. PPC-F17D-ULT5 17” 8th Gen Intel® Whiskey Lake-U Industrial Panel PC use Get a quote.

PPC-F15D_FW15D_F17D_FW19D-ULT5_Datasheet_EDITED(1.57MB)
