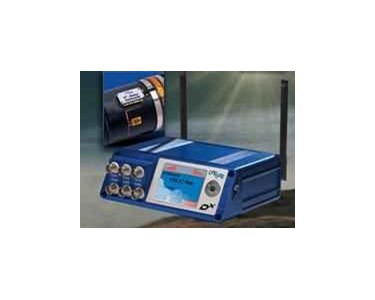

CAEMAX DataSystems’ Dx new telemetry system

The D^X telemetry system has been widely approved for drive shaft torque measurements in drive tests. For this application, we offer convenient half-shell housings for quick and easy mounting. The housing not only protects the strain gauge application, but additionally contains the telemetry electronics as well as the secondary coil for inductive supply.

The extremely small size of the shaft installed mini-telemetry unit allows for virtually unrestricted operation in confined spaces (44 x 22 mm).

• Only one telemetry rotor module is required to transmit up to four discrete signals – two Strain-bridge, one voltage and one temperature. In addition, as reference, the ambient temperature at the measuring point is also sent.
• The sample rate per channel is up to 5kHz. Excitation voltage is inductively coupled to the rotating shaft; this allows long term battery free operation, for short term testing (10 hours) battery power maybe used.

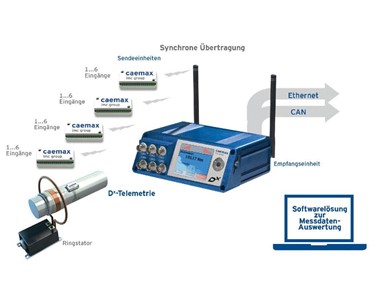

• A Dx-receiving station can synchronise several independent transmitters operating in parallel. All signals are received through telemetry simultaneously and buffered for further transfer.

This allows four separate systems to operate simultaneously on the same vehicle while monitoring the torques on all four drive axles synchronously. More complex measuring tasks can be preformed using several systems in a cascaded arrangements.
