Flowable M Filling Machine

Flowable M Filling Machine

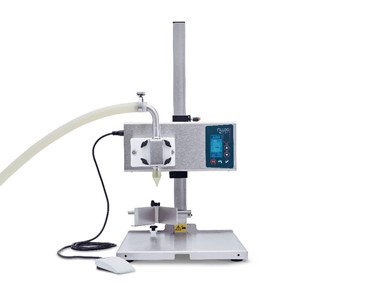

Fillogy Flowable M  filling machine is suitable to all free thick liquids and viscous products.

Technichal Data:

• Nominal voltage: 24 V DC (Power supply for 220 V included)
• Power consumption: 30 -240 W
• Motor speed: 50- 250 U/min
• Footprint: Width 350 mm x Length 350 mm
• Total height: 700 mm (optional 1,000 mm)
• Height under filling nozzle: 10 -410 mm
• Weight: 14.5 kg ( without power supply
• Dosage with step size • 0.1 g: 0.1 49.9 g • 1.0 g: 50.0 32,500.0 g
• Filling accuracy: Maximal 2% deviation
• Maximum suction lift: 1,500 mm
• Maximum volume flow: 6.5 l/min
• Filling temperature: 2 -95°C

Triggering of the filling process:

• Foot switch (included)
• Frame switch (included)
• Sensor (optional for operation with rotary table)

Operating conditions:

• Hours of operation per day: 8
• Days of operation per week: 5
• Ambient temperature: 10 -40°C

To contact Optima Weightech about FILLOGY Flowable M Filling Machine use Get a quote.
