Applications of this product

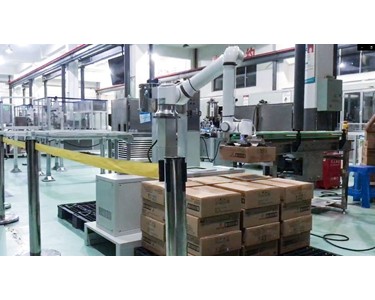

The CP Series CPL07 is designed for end-of-line palletising and high-stack pallet applications across a wide range of industries. Typical applications include:

• Carton and box palletising
• End-of-line packaging and dispatch operations
• Mixed and single carton palletising
• Warehouses and logistics environments requiring higher pallet loads
• Medium-scale palletisation with extended vertical stacking
• De-palletise>>value add>>Re-palletise
• Operations requiring frequent changeovers between pallet patterns or product sizes

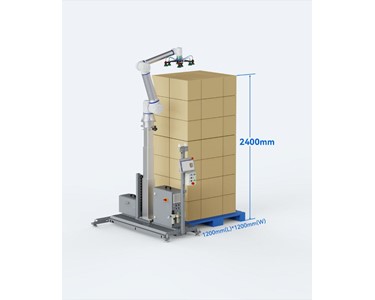

The CPL07 supports payloads from 20–30 kg, pallet sizes up to 1200 × 1200 mm, and stacking heights up to 2400 mm, making it ideal for facilities aiming to maximise pallet density without increasing floor space.

Features of this product

• Modular design with telescopic column for extended stacking height
• Collaborative robot arms (CS620, CS625, CS530H)
• Embedded palletising software with intuitive wizard-based setup
• No programming required
• Fast deployment (initial setup < 1 hour; task switch < 1 minute)
• Up to 14 boxes/min with dual vacuum cups
• EOAT compatibility with single or dual vacuum grippers
• Optional safety scanners with reduced mode and safety stop
• Compact footprint despite increased stacking height
• 3D real-time palletising preview and live process monitoring
• Single and double track palletising support

 Why choose this product

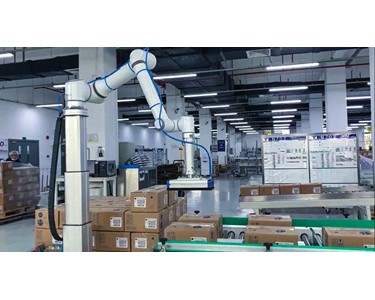

• Increased pallet capacity: Stack up to 2400 mm to maximise pallet utilisation
• Quick ROI: Typical return on investment in less than 12 months
• Ease of use: No coding or robot programming skills required
• High flexibility: Easily redeployed between production lines and applications
• Space-efficient automation: Higher stacks without expanding footprint
• Safe operation: Compliant with ISO 10218, ISO 13849, and ISO/TS 15066
• Reduced downtime: Rapid changeover between pallet patterns and products
• Cost-effective automation: Turnkey solution ready out of the box
• Future-proof design: Modular architecture with optional accessories and upgrades

Specifications of this product

Performance

• Max payload: 20–30 kg
• Max palletising height: 2400 mm (CS620 Cobot)
• Max speed: 7 boxes/min (single cup) / 14 boxes/min (dual vacuum cups)
• Max pallet size: 1200 × 1200 mm

Power & Environment

• Power supply: Single-phase 110/220 VAC, 50–60 Hz
• Peak power consumption: 2–3.5 kW
• Operating temperature: 0–50°C

Control & Connectivity

• I/O: 24 DI, 24 DO, 2 AI, 2 AO, High-speed DI
• Communication: RS485, Ethernet, Modbus TCP/RTU, Ethernet/IP, Profinet
• IP rating: IP44 (controller), IP54 (teach pendant)

Physical

• Footprint: 1400 × 1700 mm
• Teach pendant: 12.1” touchscreen (ERP400 / ERP400S)
