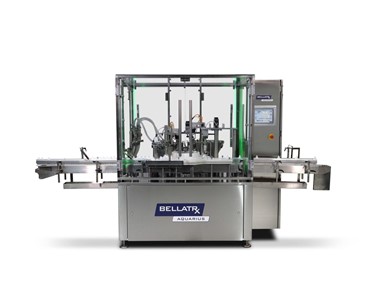

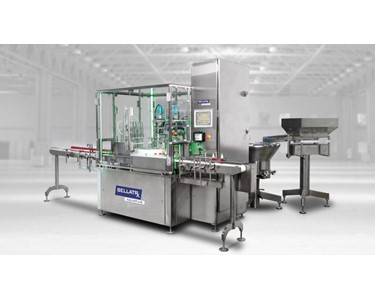

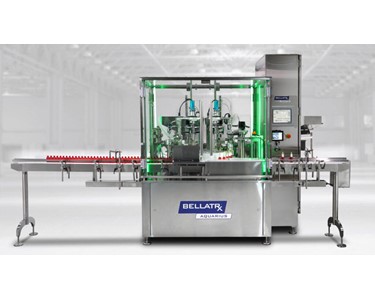

BellatRX - Liquid Filling Machine - Aquarius Monobloc Get latest price

This automated liquid filling machine is engineered for flexibility and high precision. The compact Aquarius Monobloc utilises a fill-plug-cap-torque system, optimised for processing a variety of containers in specialised environments, including pharma and food.

• Servo motion controller for synchronising operational stations
• Servo-powered 16-pocket starwheel with backing plate
• Operates at speeds up to 55 cycles per minute (single index configuration)
• Nozzle dive station with adjustable, servo-controlled stroke
• Plug and cap sorting via 304 Stainless Steel electromagnetic vibratory bowls
• Servo-driven starwheel for precise pick-up at plug and cap stations
• Adjustable torque control from 0.23–3.39 Nm (2–30 inch lbs.) using servo motor
• Status beacons (green, amber, red) with white illumination when guard doors open
• Equipped with Allen Bradley PLC (Compact Logix series) and HMI Panel View Plus 10?
• Compact footprint suitable for limited spaces
• Option for HEPA hood, labelling, nitrogen purge, and more

• Pharmaceutical and nutraceutical packaging
• Chemical, biotech, and diagnostics industries
• Cosmetics and personal care
• Food and beverage
• E-liquid products

Precision filling is achieved through volumetric piston or peristaltic pumps and diving nozzles. The servo-driven starwheel ensures every container is accurately processed, even with variable fill volumes.

• HEPA hood
• Nitrogen purge
• Integrated labelling

• Options available for eye drops, nasal care, diagnostics, scented oils, serums, and more
