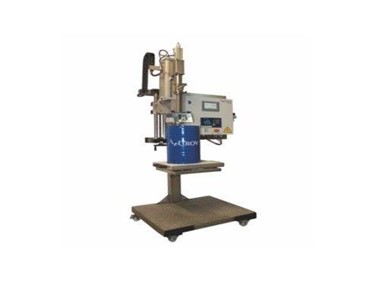

Semi Automatic Drum/Pail/Can Filling System - LSG

Their main advantage is that they do not require installation and they stand out on account of their ease of use.

The Plug & Fill machines are pre-configured, due to which clients will waste no time configuring the system. All they need to do is connect the equipment and start the filling process straight away.

Key Features:

Automatic filling (below product surface, below bunghole, over bunghole), manual feeding and evacuation of containers, manual alignment of the filling nozzle and the bunghole, quick set up and configuration, for small scale productions and frequent product and container changeover, interchangeable filling nozzle, available in ATEX Certificate, mobile equipment as an option.

• High reliability and durability of the equipment.
• Manual feeding and evacuation of containers.
• Possibility of incorporating free roller conveyors.
• Manual alignment of the filling lance and the bunghole.
• Automatic weighted filling.
• Electric or pneumatic dosing lance movement.
• No installation needed.
• For small-scale productions and frequent format or product changes.
• Adjustable filling height for filling containers of varying sizes.
• Interchangeable filling lance.
• Possibility of manufacturing in different materials and finishes.
• Available in an anti-explosion version for dangerous areas.

Productivity: Up to 200 containers/hour (30lt)

Weight: 100kg

Weighing accuracy: 20gr

Power Supply: 240V, 50-60Hz, 0,5Kw

Air Supply: 6 bar, 40 Nl/Cycle max.

Accessories: Gas hood extraction and anti-drip system, centering station, product hose holding arm, overfill control, nozzle detection, remote access system, infeed/outfeed conveyors, proportional filling, product pump control, manual earthing system, cleaning station, external flushing system, semiautomatic debugging/bunging/sealing tools, nozzles storage rack, product pan with removable rollers.

Read more...

To contact Optima Weightech about AiCROV Semi Automatic Drum/Pail/Can Filling System - LSG use Get a quote.

Their main advantage is that they do not require installation and they stand out on account of their ease of use.

The Plug & Fill machines are pre-configured, due to which clients will waste no time configuring the system. All they need to do is connect the equipment and start the filling process straight away.

Key Features:

Automatic filling (below product surface, below bunghole, over bunghole), manual feeding and evacuation of containers, manual alignment of the filling nozzle and the bunghole, quick set up and configuration, for small scale productions and frequent product and container changeover, interchangeable filling nozzle, available in ATEX Certificate, mobile equipment as an option.

• High reliability and durability of the equipment.
• Manual feeding and evacuation of containers.
• Possibility of incorporating free roller conveyors.
• Manual alignment of the filling lance and the bunghole.
• Automatic weighted filling.
• Electric or pneumatic dosing lance movement.
• No installation needed.
• For small-scale productions and frequent format or product changes.
• Adjustable filling height for filling containers of varying sizes.
• Interchangeable filling lance.
• Possibility of manufacturing in different materials and finishes.
• Available in an anti-explosion version for dangerous areas.

Productivity: Up to 200 containers/hour (30lt)

Weight: 100kg

Weighing accuracy: 20gr

Power Supply: 240V, 50-60Hz, 0,5Kw

Air Supply: 6 bar, 40 Nl/Cycle max.

Accessories: Gas hood extraction and anti-drip system, centering station, product hose holding arm, overfill control, nozzle detection, remote access system, infeed/outfeed conveyors, proportional filling, product pump control, manual earthing system, cleaning station, external flushing system, semiautomatic debugging/bunging/sealing tools, nozzles storage rack, product pan with removable rollers.

Read less...

To contact Optima Weightech about AiCROV Semi Automatic Drum/Pail/Can Filling System - LSG use Get a quote.
